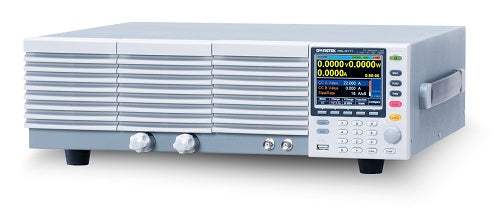

PEL-3041H Instek DC Electronic Load New

PEL-3041H Instek DC Electronic Load New

$3,216
$3,216 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Operating voltage (DC):0~800V
  • Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV
  • Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)
  • Support of High Slew Rate:Max. 0.84A/us
  • Run Program Function(GO/NO GO Test)
  • Sequence Function for High Efficient Load Simulations
  • Dynamic(Switching) Function:0.0166Hz ~20kHz
  • Soft Start Function:Off / On(1~200ms, Res:1ms)
  • Adjustable OCP / OVP / OPP / UVP Setting
  • Short Circuit Function
  • Timer function : Elapsed Time of load on
  • Cut Off Time(Auto Load Off Timer ):1s to 999h 59min 59s or Off
  • External Channel Control / Monitoring via Analog Control Connector
  • Setup Memories:100 sets
  • 3.5 Inch TFT LCD Display
  • Multi Interface : USB 2.0 Device / Host , RS-232 , GPIB / LAN (Optional)
View full details
More Details
Specifications
Datasheets

Accessories:

  • Quick Start Guide
  • CD (User Manual/Programming Manual)
  • Power Cord
  • PEL-011 Load Input Terminal Cover
  • PEL-012 Terminal Fittings Kits
  • PEL-013 Flexible Terminal Cover
  • PEL-014 J1/J2 Protection Plug
  • Front Terminal Washers
  • GTL-255 Frame Link Cable 300mm

Specifications:

  • 350 W,
  • 800 V,
  • 17.5 A



The PEL-3041H is a Single, 350 W, 800 V, 17.5 A dc electronic load from Instek.

Model No

PEL-3041H

Condition

New

Volts

800 V

Amps

17 A

Type

Single

Power

350 W

Manufacturer

Instek

Instek PEL-3000 PEL-3000H Series
