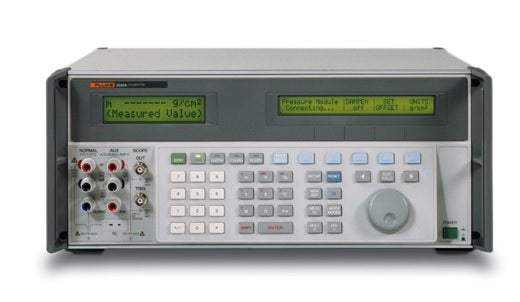

5520A Fluke Multifunction Calibrator

Used

The 5520A is a Multifunction Calibrator from Fluke. Engineers may need a sound level calibrator, radio frequency calibrator, power-meter calibrator, voltage-current calibrator, or another type for electronic test equipment calibration. Electronic calibrations are necessary for maintaining your equipment for general monitoring and testing purposes. Calibrators enable you to solve problems with your equipment on your own, on site.

 Additional Features:

  • Voltage DC Range: 0 to ±1020V
  • Current DC Range: 0 to ±20.5A
  • Resistance Range: 0 to 1100 MΩ
  • Voltage AC Range: 1 mV to 1020V; 10 Hz to 500 kHz, Sine
  • Current AC Range: 29 mA to 20.5A; 10 Hz to 30 kHz, Sine
  • Capacitance Range: 0.19 nF to 110 mF
  • Thermocouple Source and Measure Range: -250°C to +2316°C (11 types)
  • RTD Source Range: -200°C to +630°C (8 types)
  • DC Power Range: 10.9 mW to 20.5 kW
  • AC Power Range: 10.9 mW to 20.5 kW; 45-65 Hz, PF=1
  • Phase Range: 0 to ± 179.99°; 10 Hz to 30 kHz
  • Frequency Range: 0.01 Hz to 2.0 MHz
  • Power Consumption: 600 VA

General Specifications

  • Warm up Time: Twice the time since last warmed up, to a maximum of 30 minutes
  • Settling Time: Less than 5 seconds for all functions and ranges except as noted
  • Standard Interfaces: IEEE-488 (GPIB), RS-232
  • Safety: 12,200m (40,000 ft) maximum
  • Analog Low Isolation: 20V
  • EMC: Designed to comply with IEC 61326-1/1997

Temperature Performance

  • Operating: 0°C to 50°C
  • Calibration (tcal): 15°C to 35°C
  • Storage: -20°C to 70°C
  • Temperature Coefficient: Temperature coefficient for temperatures outside tcal ± 5°C is 10% of the 90-day specification (or 1-year, as applicable) per °C

Relative Humidity

  • Operating: <80% to 30°C, <70% to 40°C, <40% to 50°C
  • Storage: <95%, non-condensing

Altitude

  • Operating: 3,050m (10,000 ft) maximum
  • Non-operating: 12,200m (40,000 ft) maximum

Line Power

  • Line Voltage (selectable): 100V, 120V, 220V, 240V
  • Line Frequency: 47 to 63 Hz
  • Line Voltage Variation: + 10% about line voltage setting

Dimensions

  • Height: 17.8 cm (7 in), standard rack increment, plus 1.5 cm (0.6 in) for feet on bottom of unit
  • Width: 43.2 cm (17 in), standard rack width
  • Depth: 47.3 cm (18.6 in) overall

Applications

  • Thermocouple and RTD thermometers
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Current clamps and clamp meters
  • Analog or digital handheld and bench oscilloscopes (with options)
  • Panel meters
  • Graphical multimeters Power meters, disturbance analyzers, power quality monitors, recorders and other power quality related equipment (with option)

The Fluke 5520A Multi-Product Calibrator sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current to simulate DC and AC power with phase control, resistance, capacitance, thermocouples and RTDs.

The 5520A can also measure thermocouple temperature, humidity (with probe) and pressure using one of 28 Fluke 700 Series pressure modules.

The Fluke 5520A builds on the 5500A's capabilities, extending its workload coverage even further. Its improved accuracy, expanded ranges, and capability to calibrate 5-1/2 and 6-1/2 digit multimeters can cover virtually all your high-performance workload.
