63106 Chroma DC Electronic Load Module

Used

Features:

  • Power: 600 W
  • Voltage: 0-16V/80V
  • Current: 0-12A/120A
  • Module occupies 2 slots in mainframe
  • GPIB/RS-232C Interface

The Chroma 63106 load module is designed with state-of-the-art technology and connects all power MOSFET devices parallel to insure high accuracy load control with minimum drift of less than 0.1% +0.1% F.S. of the current setting. The Chroma 63106 load module has integrated A/D converter for voltage measurement with an accuracy of 0.05%+0.05% full scale. The built-in resistive load current sensing circuit is capable of measuring current in an accuracy full scale. Also, short circuit can be simulated. All measurement is done using remote sensing to eliminate any error due to voltage drop along the measurement.

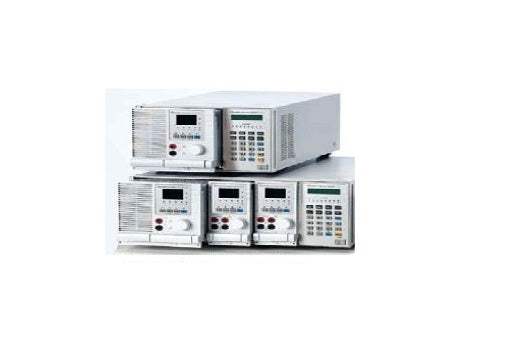

The image is a representation of selection. See specifications for product details.

More Information
ManufacturerChroma
ConditionUsed
Current120 A
TypeModule
Voltage80 V
Power600 W
