Additional Features:
- Transmission (S1, S2): ±1 dB, ±12º from 0.5 to 1300 MHz
- Reflection (S1, S2): ±2 dB, ±20º from 0.5 to 1300 MHz): ±15º from 2 to 1300 MHz.
- Maximum operating level of ±20 dBm
- Connectors: Test ports, 75 ohm APC-7, all other RF connectors, 75 ohm Type N(F); bias inputs, BNC female
- DC bias input: ±30 VDC, ±200 mA

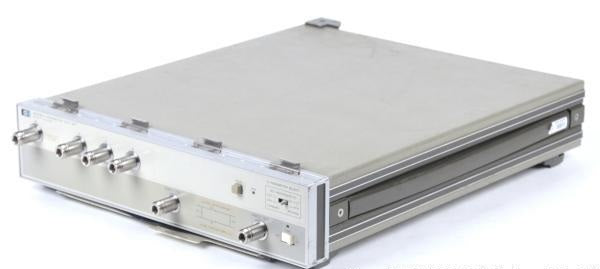

Due to its wide frequency range of 500 kHz to 1.3 GHz and directivity of >/=40 dB, the Agilent 8503B S-Parameter Test Set is considered one of the best in the industry.
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
