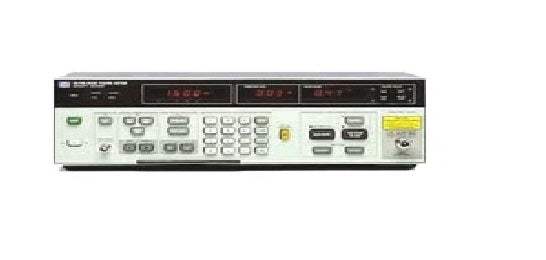

8970A Agilent Noise Meter

Used
$295.00
In Stock
Ships Today


Additional Features:

  • Frequency Range: 10 MHz to 1600 MHz
  • Noise Figure Measurement Range: 0 to 30 dB
  • NF Instrumentation Uncertainty: +0.1 dB
  • Gain Measurement Range: -20 to +40 dB
  • Gain Instrumentation Uncertainty: +0.15 dB
  • Input SWR reference impedence: <1.7 10 MHz to 1600 MHz
  • Requires 346A/B/C noise source

The Agilent 8970A takes the mystery out of noise figure measurements. A microprocessor is used to make the myriad calculations and corrections necessary for truly accurate, convenient and flexible noise figure measurements.  The ENR calibration table of the noise source may be stored in the Agilent 8970A, and a properly interpolated value is automatically used at each frequency. Measurements from 10 MHz to at least 26.5 GHz are equally simple; any IF between 10 and 1500 MHz may be used. Displays both noise figure and gain, calibrated display on oscilloscope or recorder, and powerful special function enhancements.

More Information
ManufacturerAgilent, HP, Keysight
ConditionUsed
Frequency1.6 GHz
