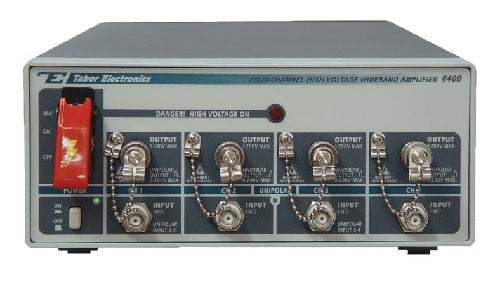

9400A Tabor Preamplifier

New
$8,225.00
Free Shipping


Features:

  • Single ended: 4 separate inputs and 2 single ended outputs, bipolar voltage
  • Unipolar: 2 separate inputs, 2 output channels with 180 degree phase offset, unipolar voltage outputs
  • Max. Out. Current: 50mA per channel
  • Input Amplitude Level: 8Vp-p(4V peaks)
  • Output Amplitude: Full power 400Vp-p(200V); Unipolar Mode 0 to +200V

Model 9400 was designed as a general purpose, wide band and high voltage amplifier however, with specific applications in mind. It has four channels built in a small case size to save space and cost but without compromising bandwidth and signal integrity.

More Information
ManufacturerTabor
ConditionNew
Frequency500 kHz
No manuals are currently available. Search all of our available manuals here.
