AFV-S-1250 Preen AC Source

Features:

• Compact and high power density: 600VA to 2500VA is only 2U and 5000VA is 4U.
• Wide output voltage of 0-310V and output frequency of 40-500Hz.
• THD is under 0.3 % when output is at 50Hz, 60Hz.
• Ideal for inrush current: capable to deliver up to 4 times of peak current.
• Current foldback feature: have output current maintain constant based on the load which output voltage varies.
• Users can quickly set and view the parameters via 5 inches touch panel or rotary knob, which provides an easy operation and measurement display.
• Equipped with communication interfaces of RS232, RS485, Ethernet(opt.), Analog(opt.), and USB(opt.).

The AFV-S series can display 4 shortcuts of 20 memory sets, and the voltage and frequency setting of each memory sets can be clearly read. Users can quickly set and view the parameters via 5 inches touch panel or rotary knob, which provides an easy operation and measurement display. The AFV-S series is equipped with communication interfaces of RS232, RS485, Ethernet(opt.), Analog(opt.), and USB(opt.).

Intuitive Touch Screen Control

To create a complex sequence on the HMI is no longer a difficult task for AFV-S series. The 5 inches touch screen provides users a clear display and an easy set up. AFV-S is also equipped with a rotary knob for better fine tune adjustments.

4 Shortcuts of Memory Sets

AFV-S series can display 4 shortcuts of memory sets, and the voltage and frequency setting of each memory sets can be clearly read. The user can quickly switch the output by selecting the shortcuts. Also, the Screen Lock function is also provided for preventing operators from accidentally changing shortcuts during output and causing DUT damage.

Waveform Display & Comprehensive Measurement

AFV-S series is capable of providing output waveform display and precise measurements, user can easily check the measurements of RMS voltage, output frequency, RMS current, true power, apparent power, reactive power, power factor and crest factor according to the product output. Additionally, all measurements can be exported as a report via the control software for analyzing and tracking EUT performance.

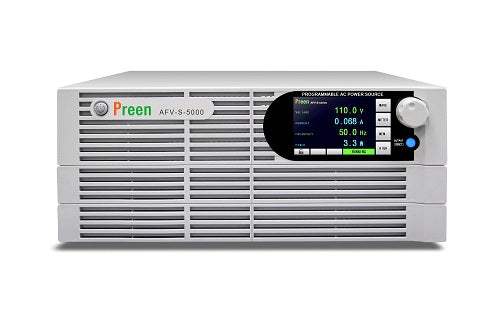

The image is a representation of selection. See specifications for product details.
