Features:
Features of the R&S ESCI Receiver include:
- Total measurement uncertainty < 1 dB
- Displayed average noise level (DANL) typ. –155 dBm
- 1 dB compression point +5 dBm * Pulse-protected RF input
- Preselection filters
- Built-in 20 dB preamplifier
Outstanding performance
- Programmable scan table with up to 10 subranges
- Internal test routines for automated or interactive preview & final EMI measurements
- Evaluation functions for prescan, data reduction (peak list) and final measurement
- Spectrum analyzer
- Fast ACP measurements
- Time domain analysis (recording time > 2 h)
Versatile use
- Diverse IF filters (EMI, 3 dB, channel, RRC, FFT)
- Battery or AC supply operation
- Remote control operation
- PC-compatible screenshots
- Windows XP printer support
- USB interface
- Storable instrument settings

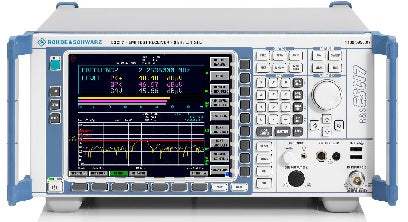

The R&S ESCI EMI Test Receiver is an addition to the tried-and-tested family of top-class EMI test receivers from Rohde & Schwarz based on a spectrum analyzer platform. The R&S ESCI measures electromagnetic emissions in full compliance with CISPR 16-1-1 and in line with all civil EMC standards and covers a frequency range from 9 kHz to 3 GHz.
| Manufacturer | Rohde & Schwarz |
|---|---|
| Condition | Used |
| Frequency | 3 GHz |
