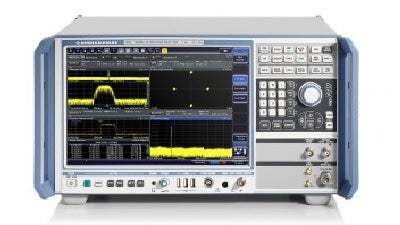

FSW26 Rohde & Schwarz Signal Analyzer

Used

The FSW26 is a 26.5 GHz signal analyzer from Rohde & Schwarz. Engineers use signal analyzers to combine the capabilities of spectrum and vector signal analyzers. A signal analyzer is a piece of electronic test equipment that takes measurements of power, magnitude, distortion, phase noise, modulation, and demodulation quality of input signals.

Additional Features:

  • Low phase noise of –137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
  • –88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
  • Up to 2 GHz analysis bandwidth
  • < 0.4 dB total measurement uncertainty up to 8 GHz
  • Real-time analysis up to 512 MHz bandwidth
  • High-resolution 12.1" (31 cm) touchscreen for convenient operation
  • Multiple measurement applications can be run and displayed in parallel

Supported Technologies:

  • WCDMA/HSPA/HSPA+
  • 3GPP LTE
  • GSM/EGPRS/EDGE Evolution/VAMOS
  • CDMA2000® 1xEV-DO
  • CDMA2000® 1xRTT
  • TD-SCDMA
  • GSM-R
  • TETRA
  • cdmaOne
  • DECT
  • WLAN IEEE 802.11 a/b/g/j/p/n/ac
  • ZigBee™ IEEE 802.15.4
  • RFID
  • WRAN IEEE 802.22
  • WWAN IEEE 802.20
  • DVB-H
  • ISDB-T 1 Seg
  • CMMB
  • DVB-T
  • DVB-T2
  • ISDB-T
  • AM
  • FM
  • DVB-S
  • DVB-S2
  • DOCSIS 3.1

Featuring a low displayed average noise level (DANL) of typ. –159 dBm (1 Hz) at 2 GHz and –150 dBm (1 Hz) at 25 GHz without using a preamplifier, the R&S FSW measures spurious emissions quickly and reliably over a wide frequency range. DANL can be further improved by up to 13 dB by means of the analyzer's switch-selected noise cancellation. Users can thus identify even the smallest of spurious emissions that were previously hidden in the noise floor, and effectively optimize transmit systems.
