Features
- usb storage
- v/i curve tracer
- arbitrary waveform
- waveform reproduction
Specifications
- Source and sink operation up to 110 V/3.2 A (four-quadrant operation)
- Basic accuracy: ±0.02% (DC voltage generation)
- Sweep output at up to 100-µ intervals
- Comes with abundant sweep patterns (linear, logarithmic, and arbitrary)
- Stores up to 65535 points of source measure data in the internal memory
- Remote control and FTP using Web server function (Optional)
- Easy file operation with the USB storage function
- The output and measurement resolutions are 5.5 digits.
- Voltage generation/measurement range: 200 mV to 110 V
- Current generation/measurement range: 20 µA to 3.2 A
Maximum output current
- ±3.2 A & (at an output voltage of ±12 V or less)
- ±2 A (at an output voltage of ±30 V or less)
- ±1 A (at an output voltage of ±60 V or less)
- ±0.5 A (at an output voltage of ±110 V or less)
Operation modes
- Voltage generation/current measurement (VS/IM);
- Voltage generation/voltage measurement (VS/VM);
- Current generation/voltage measurement (IS/VM);
- Current generation/current measurement (IS/IM);
- Voltage generation (VS);
- Current generation (IS);
- Resistance measurement (VS/IM or IS/VM)

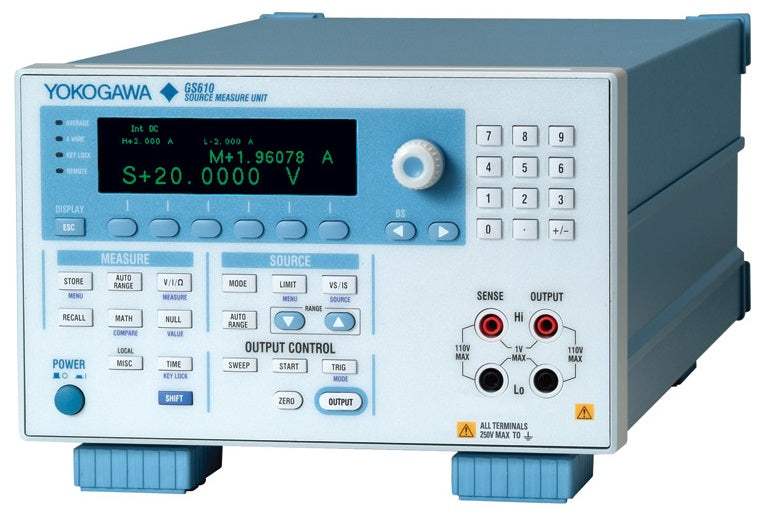

The GS610 is a highly accurate and highly functional programmable voltage/current source that incorporates voltage/current generation and measurement functions. The maximum output voltage and current are 110 V and 3.2 A, respectively. Evaluation of over a wide range of basic electrical characteristics is possible because the GS610 can operate as a current source or a current sink.
| Manufacturer | Yokogawa |
|---|---|
| Condition | Used |
| Volts | 110 V |
| Amps | 3.2 A |
| Power | 60 W |
