Features:
- Built-in 3 GHz Spectrum Analyzer (MDO4054C SA3)
- 4 analog channels; 16 optional additional digital channels
- 500 MHz bandwidth, upgradable to 1 GHz
- Up to 5 GS/s sample rate
- 20 M record length on all channels
- 340,000 wfm/s maximum waveform capture rate
- Standard passive voltage probes with 3.9 pF capacitive loading and 500 MHz analog bandwidth
- Optional Arbitrary/Function Generator
- Optional 16-channel Logic Analyzer with 20 M record length on all channels
- Optional Protocol Analyzer
- Digital Voltmeter/Frequency Counter – Free from Tektronix with registration
- Upgradeability: Add analog bandwidth, spectrum analyzer, function generator, digital channels, or protocol analysis as needed

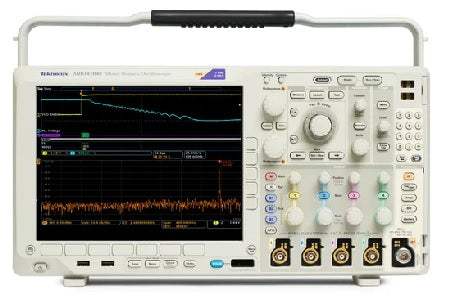

Customizable and fully upgradeable 6-in-1 integrated oscilloscope with synchronized insights into analog, digital, and RF signals
Introducing the world's highest performance 6-in-1 integrated oscilloscope that includes a spectrum analyzer, arbitrary/function generator, logic analyzer, protocol analyzer and DVM / frequency counter. The MDO4000C Series has the performance you need to solve the toughest embedded design challenges quickly and efficiently. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum, ideal for incorporating wireless communications (IoT) and EMI troubleshooting. The MDO4000C is completely customizable and fully upgradeable so you can add the instruments you need now – or later.
| Manufacturer | Tektronix |
|---|---|
| Condition | Used |
| Channels | 4 |
| Frequency | 500 MHz |
| Record Length | 20 MPts |
| Sampling Rate | 5 GS/s |
