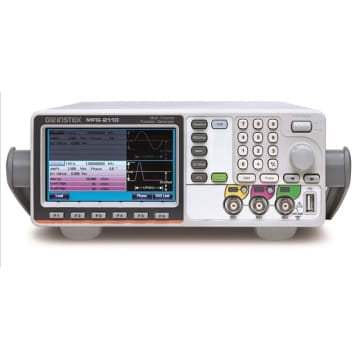

MFG-2110 Instek Function Generator
Features:
- Maximum Five Output Channels
- 2 Equivalent Performance Arbitrary Channels Frequency : 1 Hz~10/20/30/60MHz
- RF Channel Frequency (FG/ARB/MOD) : 160/320MHz
- Pulse Generator Frequency : 25MHz
- Power Amplifier : Low Frequency, 100kHz, Output 20W (model numbers ending in A)
- True Point by Point Output Arbitrary Waveform Function : 200MSa/s, 100MHz Repetition Rate, 14-bit Resolution,16k Point Memory Depth
- Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis
- Frequency Counter : 150MHz, 8 bits
- AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
- USB Host/USB Device/LAN (MFG-22XX only)
- 4.3 Inch TFT Color Display
Accesssories:
- Quick Start Guide
- CD-ROM with MFG Software
- User Manual
- GTL-110 BNC Cable
Specifications:
- Channels - 2
- Frequency Maximum - 10 Mhz
- Frequency Minimum - 1 uHz (0.000001 Hz)
- Functions - Burst, Noise, Pulse, Ramp, Sine, Square, Sweep, Triangle
- Max Amplitude - Vpp @ 50 ohms 10 V
The GW Instek rolls out the MFG-2110 multi-channel function generator, which has up to 2 simultaneous output channels, including CH1 and CH2 equivalent performance dual channel arbitrary function generator with the maximum 60MHz for both channels; RF signal generator, a standard AFG, which produces the maximum 320MHz sine wave and various modulation RF signals; pulse generator, whose frequency reaches 25MHz; power amplifier, which is ideal for audio range. The above-mentioned five different functionality channels are separately or totally allocated on 10 models, which extend from the basic single-channel AFG with pulse generator models to five-channel models so as to satisfy various educational and industrial applications.
Manufacturer | Instek |
---|---|
Condition | New |
Frequency | 10 MHz |
