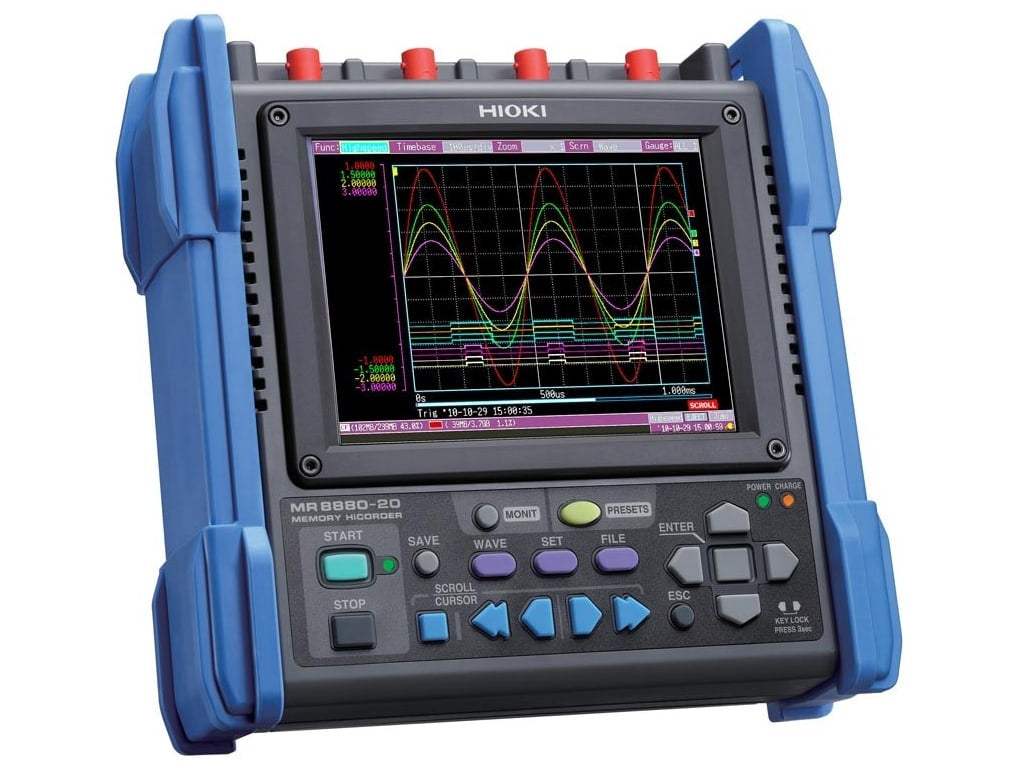

MR8880 Hioki Recorder

Features:

• Number of channels: 4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND
• Measurement ranges (10 div full-scale): 4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range RMS value mode: 30 Hz to 10 kHz, Crest factor: 2
• Max. rated voltage: Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV
• Frequency characteristics: DC to 100 kHz (±3dB)
• Time axis (High-speed function): 100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range
• CAT III 600V isolation performance; directly measure a 480V power line
• 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel
• Tough against harsh environments; -10°C to 50°C operating temperature range
• Built to withstand mechanical shocks and vibrations (ships standard with side protectors)
• Make settings easily with PRESETS function

Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple quick-changing phenomena due to complete isolation between channels and from each channel to the ground. The MR8880 is a data acquisition (DAQ) recorder built in with 4 analog channels that can accept direct input of 600V, enabling measurements of 3-phase systems.
