Additional Features:
Measurements:
- Cable and antenna analyzer for return loss, one-port cable loss, distance to fault, line sweeping, and VSWR measurements
- Handheld network analyzer (S11, S21, phase, and Smith Chart)
- Handheld spectrum analyzer, optional preamplifier
- Cable trimming
Calibration:
- Integrated QuickCal allows you to calibrate FieldFox without a calibration kit, providing worry-free accuracy and repeatability
- Immediate calibration with FieldFox’s CalReady makes the unit calibration ready at the test port immediately following power-up
- Broadband calibration with automatic interpolation to eliminate re-calibration of FieldFox when the test frequency or the number of points changes
- Mechanical open, short, load calibration support

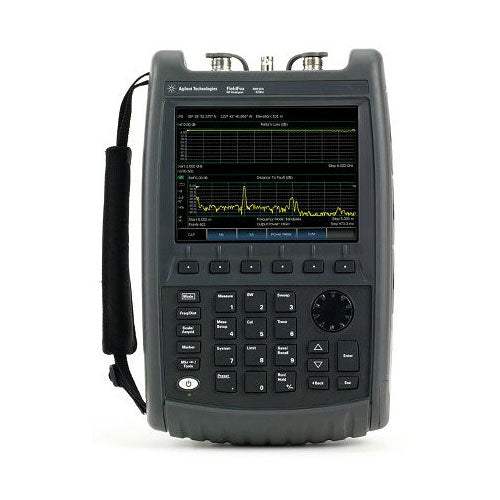

The Agilent N9912A FieldFox RF Analyzer is the world’s most integrated handheld instrument for wireless network installation and maintenance. It combines cable/antenna analysis, spectrum analysis, power meter measurements, vector network analysis, and a vector voltmeter into one rugged, compact, lightweight and weather-resistant package. Standard accessories include AC/DC adapter, battery, soft carrying case, user manual and FieldFox Data Link software. Additional accessories are available under Agilent N9910X RF and MW handheld accessories.
Manufacturer | Agilent, HP, Keysight |
---|---|
Condition | Used |
Frequency | 4 GHz |
010 | VNA time domain |
---|---|
030 | Remote control capability |
104 | 4 GHz RF vector network analyzer, transmission/reflection |
110 | Transmission measurement |
111 | QuickCal |
210 | VNA transmission/reflection |
211 | VNA full 2-port S-parameters |
215 | TDR CABLE MEASUREMENTS |
230 | Spectrum analyzer |
231 | 6 GHz spectrum analyzer (requires Option 106) |
233 | Spectrum analyzer |
235 | Preampliier for spectrum analyzer (requires Option 230 or 231) |
236 | Interference analyzer and spectrogram |
238 | Spectrum analyzer time gating |
302 | External USB power sensor support |
303 | Network analysis capability |
305 | Cable and antenna analyzer |
307 | GPS receiver |
308 | Vector voltmeter |
309 | DC bias variable-voltage source |
310 | Built-in power meter |
350 | REAL-TIME SPECTRUM ANALYZER (RTSA) |
