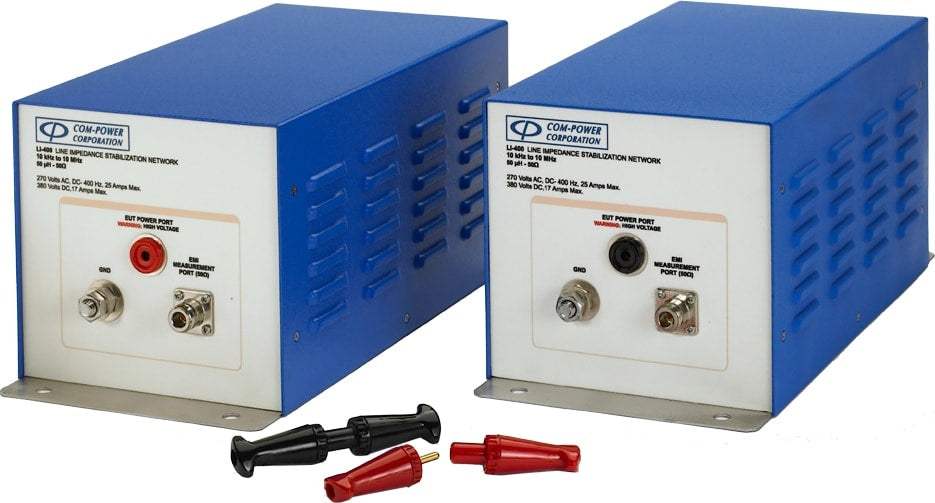

LI-400C Com-Power LISN

Features:

• Frequency range of 10 kHz to 10 MHz
• Fully compliant with MIL-STD 461
• “Air-core” inductors to prevent saturation
• Individual Calibration Included
• Three-Year Warranty

Specifications:

• Specification: MIL-STD 461
• Application: Power Line conducted emission tests
• Frequency Range: 10KHz - 10 MHz
• RF Connector: 50 Ohms N-type (female)
• Current Rating: 25 Amp
• Voltage Rating: 270 VAC 50 Hz - 400 Hz (Line to Ground), 380 VDC
• Inductors: 50 microhenry (air-core)
• Mains & EUT Connections: Superior Electric SUPERCON Shrouded sockets
• Dimensions (each network): 13 x 7 x 7 inches / 33 x 17.7 x 17.7 cmrelevant requirements of MIL-STD 461.

Accessories:

• Calibration data and Certificate traceable to NIST
• Superior Electric shrouded plugs for EUT and power connection.

The LI-400C Line Impedance Stabilization Network provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-400C is compliant with MIL-STD 461.

The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results.

The LI-400C includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-400C pair can be used to accommodate 3-phase power systems (Wye or Delta configurations).

The LI-400C is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included.

This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-400C is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.

Use of a Transient Limiter for impedance matching, reduction of out-of-band emissions and transient protection for your measurement instrument is highly recommended and available from Com- Power.

All Com-Power LISNs are individually calibrated in compliance with the relevant requirements of MIL-STD 461. Impedance and Insertion Loss data is supplied with each unit, along with the calibration certificate.
