Features:
- 8 Channels Simultaneously Sampled at 12-Bit Resolution
- 60 MS/s Real-Time Sampling
- 60 MHz Bandwidth
- 50 mVpp to 30 Vpp Input Range
- 72 dBc SFDR
- 16, 128, or 512 MB of Onboard Memory
- Edge, Window, Hysteresis, and Digital Triggering

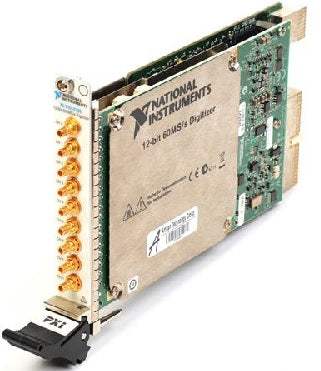

The National Instruments PCI-5105 / PXI-5105 12-Bit 8-Channel Digitizers feature eight 60 MS/s simultaneously sampled input channels with 12-bit resolution, 60 MHz bandwidth, and up to 512 MB of memory in a compact, 3U PXI/PXI Express or PCI device. An NI 5105 uses the National Instruments Synchronization and Memory Core (SMC) architecture, so you can combine multiple devices to build up to 136 phase-coherent channels in a single PXI chassis. The NI 5105 can also be synchronized with other analog and digital instruments to create mixed-signal test systems. NI 5105 devices are ideal for a wide range of applications including ultrasonic nondestructive test (NDT), medical imaging, scientific research, military/aerospace, and consumer electronics.
| Manufacturer | National Instruments |
|---|---|
| Condition | Used |
