Additional Features:
- Voltage:0-60V
- Current: 0-50A
- Power: 3000W
- Constant voltage with automatic crossover and mode indication
- Parallel or series connection
- External shutdown, external indicator signals
- Remote/local modes
- Remote sense, 1 V line loss compensation
- Analog programming
- LabVIEW® driver
Protection Features
- Over voltage protection
- Current limit
- Over temperature protection

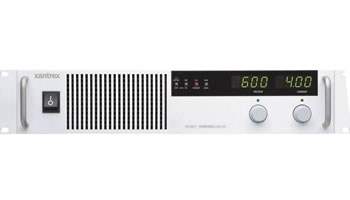

The Xantrex XKW60-50 programmable DC power supply provides 3 kW of clean, reliable power for OEM applications where high power and a wide adjustment of output voltage or current are required in a compact configuration. The supplies are ideal for research, product development, production test, ATE, electroplating, burn-in, and other bulk power applications.
The XKW60-50 uses high frequency conventional PWM switching to achieve high power density in a compact 19-inch rack package.
| Manufacturer | Xantrex |
|---|---|
| Condition | Used |
| Current | 50 A |
| Voltage | 60 V |
| Power | 3 kW |
| M9A | IEEE-488, OVP, 12bit digital readback of volts and amps |
|---|---|
| MAA | Analog programming interface card |
| MGA | GPIB Interface card |
| MRA | RS-232 Interface card |
