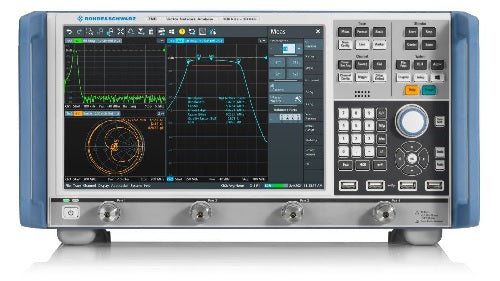

ZNB20 Rohde & Schwarz Network Analyzer
Used
$44,995.00
Features:
- Frequency range from 100 kHz up to 20 GHz
- 2 or 4 ports
- Wide dynamic range of up to 140 dB
- Short sweep times, e.g. 4 ms for 401 points
- High temperature stability of typ. 0.014 dB/K
- Wide power sweep range of 98 dB
- Wide range of IF bandwidths from 1 Hz to 10 MHz
- Manual and automatic calibration
- Large, high-resolution 12.1" screen
- Touchscreen user interface
- Expansion to up to 48 ports using switch matrices
With frequency ranges of 9 kHz to 4.5 GHz/8.5 GHz and 100 kHz to 20 GHz, the network analyzers are targeted at applications in the mobile radio, electronic goods and aerospace and defense sectors, plus they can be used in high speed printed board design. The R&S ZNB is the right choice when it comes to developing, producing and servicing RF components such as amplifiers, mixers, filters, connectors and cables.
The R&S ZNB vector network analyzers feature a wide dynamic range of up to 140 dB (at 10 Hz IF bandwidth), low trace noise of less than 0.004 dB RMS (at 10 kHz IF bandwidth) and high output power of up to +13 dBm, which can be adjusted electronically in a range of more than 98 dB.
Manufacturer | Rohde & Schwarz |
---|---|
Condition | Used |
Frequency | 20 GHz |
B10 | GPIB Interface |
---|---|
B12 | Device Control |
B14 | Handler I/O |
B22 | Extended Power Range Ports 1-2 |
B4 | Precision Freq. Reference |
B81 | DC Inputs |
