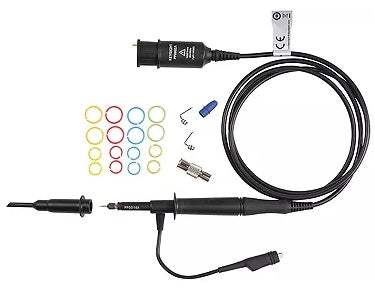

• PP0001A Keysight Technologies Probe
1 1
New
Earn Loyalty with Rewards
Compare

PP0001A Keysight Probe New

PP0001A Keysight Probe New

$1,156
$1,156 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Select option

Features:

  • 1 GHz of analog bandwidth (<4 pF input capacitance)
  • 300 Vrms CAT II input voltage, and up to 1.5 kV peak transient overvoltage
  • 10 M? input impedance at low frequencies
  • AutoProbe I compatibility
  • 1.3 meter cable length for ease of use
  • Small 5mm tip and compact probe design for easy probing on smaller targets
  • Variable attenuation, automatically configured by the oscilloscope
  • Rigid tip for secure device-under-test connectivity
  • Replaceable probe tip cartridges
  • Large accessory set for versatile connectivity
View full details
More Details
Specifications

The PP0001A is Keysight’s first passive probe with up to 1GHz of analog bandwidth with less than 4 pF of capacitive loading. It provides all the ease of use benefits of a passive probe, with the performance generally seen from an active probe. The AutoProbe I interface provides offset and auto-configuration of probe type and attenuation setting.

The PP0001A is designed for use on InfiniiVision and Infiniium oscilloscopes with the AutoProbe I interface, with the use of the PP0004A adapter. The PP0001A/2A/3A probes are a new generation of Hi-Z+ probes for which the probe is to be viewed as a combination of the “probe and probe adapter (PP0004A)”. This combination does not have a fixed attenuation ratio but rather has multiple available attenuation ratios per given V/div settings to accommodate a very large dynamic range and flat frequency response.

Model No

PP0001A

Condition

New

Manufacturer

Keysight
