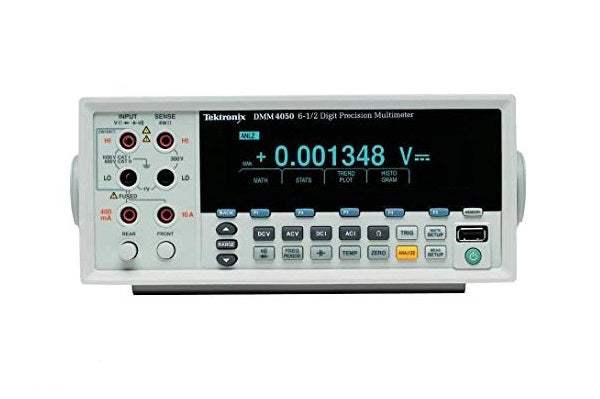

DMM4050 Tektronix Multimeter

Features:

• 6.5 Digit Resolution
• Basic VDC Accuracy of up to 0.0024%
• 100 mV to 1000 V Voltage Range, with up to 100 nV Resolution
• 100 μA to 10 A Current Range, with up to 100 pA Resolution
• 10 Ω to 1 GΩ Range, with up to 10 μΩ Resolution
• CAT I 1000 V, CAT II 600 V
• Volts, Ohms, and Amps Measurements
• True RMS (AC, AC + DC) Measurements
• Diode and Continuity Testing
• Frequency and Period Measurements
• Temperature and Capacitance Measurements
• 2×4 Ohms 4-wire Measurement Technique
• TrendPlot Paperless Data Recorder Mode
• Measurement Statistics
• Histogram Mode

Connectivity

• Front and Rear 2×4 Measurement Inputs
• USB Host Port on Front Panel for Easy Storage of Measurement Data and Instrument Settings
• RS-232, LAN, and GPIB Ports on Rear Panel for Quick PC Connectivity

As the circuits in embedded system designs become more sophisticated with tighter tolerances, you must measure a multitude of different parameters with a high degree of accuracy to validate your design. The Tektronix DMM4050 6.5 digit bench multimeter packs many different functions and analysis into one instrument, all with exceptional precision and performance.

Typical multimeter measurements – volts, ohms, and amps – are made with a basic VDC accuracy of up to 0.0024%, and resolution of 100 pA and 10 μΩ, ensuring you have the performance you need for today’s demanding designs. You can also use the DMM4050 to measure frequency and period, and to perform continuity and diode tests. For additional flexibility, the DMM4050 offers temperature and capacitance measurements. This allows you to replace your temperature meter, capacitance meter, counter, continuity tester, and traditional DMM with one versatile instrument, saving bench space and cost.
