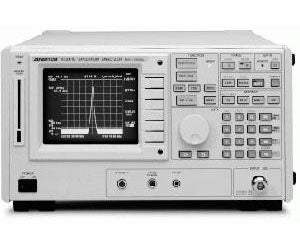

R3361D Advantest Spectrum Analyzer
The R3361D is a 3.6 GHz Spectrum Analyzer from Advantest. A spectrum analyzer measures the power of spectrums of known and unknown signals. Spectrum analyzers collect information such as the magnitude of an input signal compared to its frequency. As a frequency analyzer, spectrum analyzers’ main use is to document and analyze electrical input signals as well as spectral compositions of other signals.
- Frequency range: 9 kHz-3.6 GHz
- Total Level Accuracy: 1 dB (Typical)
- User-defined Functions
- Measuring Window Function
- 120 dB Display Range
- Built-in Tracking Generator
- CDMA Power Measurements (with Option 1K)
The Advantest R3361D Spectrum Analyzer uses a synthesized technique to cover wide frequency bands: 9 kHz to 3.6 GHz. These compact analyzers also offer high-performance functions, such as the 1 Hz resolution frequency setting function and 1 Hz resolution frequency counter function.
The Advantest R3361D Spectrum Analyzers are easy to operate because they incorporate unique features such as user-defined and measuring window functions.The analyzers are small and useful for measurement and analysis of all kinds, from manufacturing to research and development.
The R3361D has a parallel I/0 and GPIB interface for line connection and automatic measurement, so the user can create the optimum system configuration.
